VF 300 / VF 380/ VF 600
INTRODUCTION
VF 300 / VF 380 / VF 600 is a new generation facial identification terminal, with Face, RFID and PIN Recognition mode. With latest facial algorithm ZK Face 7.0 and large capacity ZEM810 platform, it holds 200 face templates without dividing groups, and its verification time is less than 1 Second. All setting operations are easily done on 3.0 inches TFT touch screen. The elegant and small size design can fit with your slap-up office. Have ZK Face identification system, your life will become more secure and convenient.
Features:
• Elegant ergonomic design
• TCP/IP communication and USB Host.
• 3.0 inch TFT touch screen, T9 Input, 9 Digit User ID.
• Infra-red optical system enables user-identification in poorly lit environments.
• Optional Mifare card module
• Professional facial identification algorithm |
Specifications:
|
Hardware |
Platform: ZEM810 |
Image Sensor |
Special Stereo Dual Sensor |
Display |
3 Inch Touch Screen |
Face Capacity |
200(1:N) |
ID Card Capacity |
10,000 |
Logs capacity |
100,000 |
Algorithm Version |
ZKFace7.0 |
Communication |
TCP/IP, USB Host |
Standard functions
| ID card?Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST?Scheduled-bell |
Optional Functions |
Mifare card. |
Power Supply |
12V/1.5A |
Verification Speed |
less than 1S |
Operating temperature |
0-45 |
Operating Humidity |
20%-80% |
Dimensions(L×H×D) |
104.70×160.00×36.00 mm |

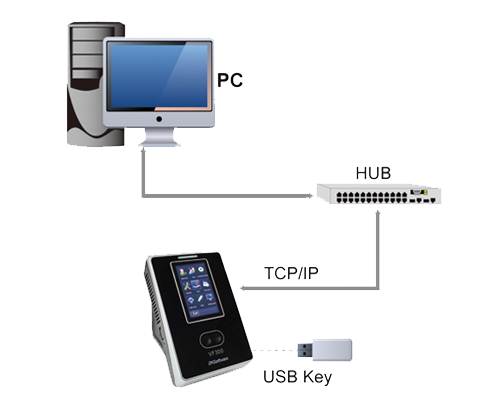

Connection Diagram:
|
|
|
| |
 |
|
|
|
