Iclock 580/Iclock 260/Iclock 360/BS 101
INTRODUCTION
Iclock 580/Iclock 260/Iclock 360/BS 101 is an innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The Iclock 580/Iclock 260/Iclock 360/BS 101 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The 3.5” TFT can display more information vividly, including user photo, fingerprint image quality and verification result etc. 8 function keys are the shortcuts to change the attendance status, work-code or to browse the short message, and can be defined as required. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds.
Features:
• Color TFT screen with GUI Interface for ease of use.
• ZK Optical Sensor
• 1 touch a-second user recognition
• Stores 8,000 templates and 200,000 transactions
• Reads Fingerprint and/or PINs
• Optional integrated proximity or smart card reader
• Built-in Serial and Ethernet ports
• Built-in USB port allows for manual data transfer when network isn't available
• Optional integrated Wi-Fi also available.
• 8 user-defined function keys
• Multi Language Support
• Built in bell scheduling
• Real-time 1-touch data export 3rd party hosted & non-hosted applications
• Audio-Visual indications for acceptance and rejection of valid/invalid fingers
• SDK available for OEM customers and software developers |
Specifications:
|
Fingerprint Capacity |
8000 templates |
Transaction Capacity |
200,000 |
Sensor |
ZK Optical Sensor |
Algorithm Version |
ZK Finger v10.0 |
Communications |
RS232/485, TCP/IP, USB-host |
Standard Functions |
Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, photo-ID |
Gross Weight |
1.05 kg |
Optional Functions |
ID/Mifare,Webserver,9 digit user ID, Wi-Fi |
Display
| 3.5 inches TFT Screen |
Power Supply |
12V DC 1.5A |
Operating Temperature |
0 - 45 |
Operating Humidity |
20%-80% |
Dimension |
192X137X45 mm |

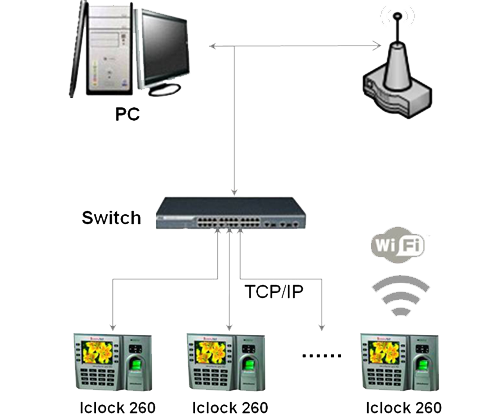

Connection Diagram:
|
|
|
| |
 |
|
|
|
