Iclock 2500/Iclock 2800/Iclock 3500/Iclock 3800
INTRODUCTION
Iclock 2500/Iclock 2800/Iclock 3500/Iclock 3800 is an innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The Iclock 2500/Iclock 2800/Iclock 3500/Iclock 3800 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The 8 inch TFT can display more information vividly, including user photo, fingerprint image quality and verification result etc. 8 function keys are the shortcuts to change the attendance status, work-code or to browse the short message, and can be defined as required. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds. The camera can capture the image of the user. Backup battery can provide more than three hours power supply when power input fails down.
Features:
• Color TFT screen with GUI Interface for ease of use.
• ZK Optical Sensor
• High resolution camera
• Internal backup battery
• 1 touch a-second user recognition
• Stores 8,000 templates and 200,000 transactions
• Reads Fingerprint, PINs or ID card
• Optional integrated smart card reader
• Built-in Serial and Ethernet ports
• Built-in USB port allows for manual data transfer when network isn't available
• Optional integrated Wi-Fi\ GPRS also available.
• 8 user-defined function keys
• Multi Language Support
• Built in bell scheduling
• Real-time 1-touch data export 3rd party hosted & non-hosted applications
• Audio-Visual indications for acceptance and rejection of valid/invalid fingers
• SDK available for OEM customers and software developers |
Specifications:
|
Fingerprint Capacity |
8000 templates |
Transaction Capacity |
200,000 |
Sensor |
ZK Optical Sensor |
Algorithm Version |
ZK Finger v10.0 |
Communications |
RS232/485, TCP/IP, USB-host |
Camera |
300,000 pixels camera |
Standard Functions |
Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, photo-ID, ID card, Backup Battery, web-server |
Optional Functions |
Mifare/HID/iClass,9 digit user ID, Wi-Fi, GPRS, Printer, SOAP |
Display
| 8 inches TFT Screen |
Power Supply |
12V DC 1.5A |
Operating Temperature |
0 ?- 45 ? |
Operating Humidity |
20%-80% |
Dimension(W×H×D) |
314.5X256.5X79 mm |
Gross Weight |
3.10 kg |

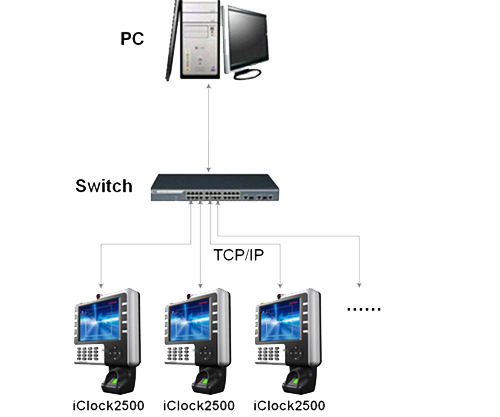

Connection Diagram:
|
|
|
| |
 |
|
|
|
