X628-C/X628-TC/T4-C/B1-C/B3-C/TK100-C
INTRODUCTION
X628-C/X628-TC/T4-C/B1-C/B3-C/TK100-C is an innovative biometric fingerprint reader for Time & Attendance applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The X628-C/X628-TC/T4-C/B1-C/B3-C/TK100-C features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The 3” TFT can display more information vividly, including fingerprint image quality and verification result etc. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds.
Features:
• Color TFT screen with GUI Interface for ease of use
• ZK Optical Sensor
• 1 touch a-second user recognition
• Stores 3,000 templates and 100,000 transactions
•Reads Fingerprint and/or PINs
• Optional integrated proximity or smart card reader
• Built-in Serial and Ethernet ports
• Built-in USB port allows for manual data transfer when network isn't available
• Multi Language Support
• Built in bell scheduling
• Real-time 1-touch data export 3rd party hosted & non-hosted applications
• Audio-Visual indications for acceptance and rejection of valid/invalid fingers
• SDK available for OEM customers and software developers |
Specifications:
|
Fingerprint Capacity |
3000 templates |
Transaction Capacity |
100,000 |
Sensor |
ZK Optical Sensor |
Algorithm Version |
ZK Finger v10.0 |
Communications |
RS232/485, TCP/IP |
Standard Functions |
Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch |
Hardware Platform |
ZEM510 |
Optional Functions |
ID/Mifare/HID,USB-host,Webserver,printer,9 digit user ID |
Display
| 3 inches TFT Screen |
Power Supply |
5V DC 2A |
Operating Temperature |
0 ℃- 45 ℃ |
Operating Humidity |
20%-80% |
Dimension |
190X142X53 mm |
Gross Weight |
0.90 kg |

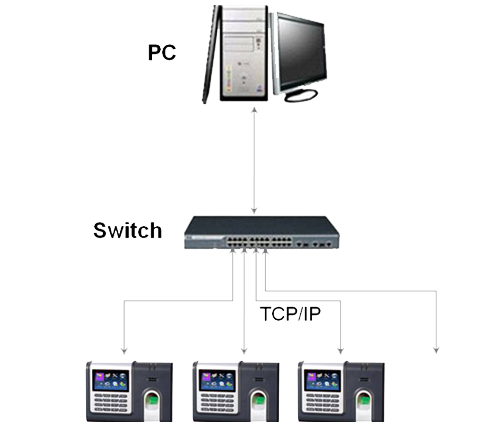

Connection Diagram:
|
|
|
| |
 |
|
|
 |
