S200/S300/K200/K300
INTRODUCTION
The S200/S300/K200/K300 is a proximity time and attendance terminal developed by ZKSoftware. It is based on ZEM500 platform. It offer unparalleled performance using the state of the art proximity reader and embedded Linux platform. The world famous Linux system ensures stable and reliable network transmission. TCP/IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds.
Features:
• High-efficiency proximity card identification
• long distance card read
• Standard 125kHz Proximity Card Reader, optional HID, Mifare and iClass Reader
• Built-in Serial and Ethernet ports
• Built in bell scheduling
• Multi Language Support
• Audio-Visual indications for acceptance and rejection of valid/invalid fingers
• Function Keys to select the IN or OUT status of the punches
• Voice Prompt Function
• Real-time 1-touch data export 3rd party hosted & non-hosted applications
• SDK available for OEM customers and software developers |
Specifications:
|
Card Capacity |
30,000 |
Transaction Storage |
100,000 |
Hardware Platform |
ZEM510 |
Operating System |
Linux |
Communications |
RS232/485, TCP/IP |
Card Support |
ID Card(Standard), optional HID/Mifare Card |
Standard Functions |
Work code, SMS, DLST, Automatic Status Switch, Scheduled-bell, Self-Service Query, 5 digit user ID |
Optional Functions |
ADMS, Print, Soap, Web-server, USB-Host, 9 digit user ID |
Display
| Black & White LCD |
Power Supply |
5V DC 2A |
Operating Temperature |
0 ℃- 45 ℃ |
Operating Humidity |
20% - 80% |
Dimension(W×H×D) |
184.3×130×48 mm |

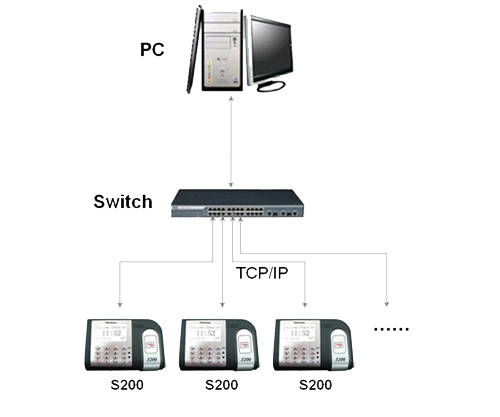

Connection Diagram:
|
|
|
| |
 |
|
|
|
