C3-100/C3-200/C3-400

INTRODUCTION

ZKSoftware’s ZKAccess Systems are built on flexible, open technology to provide management, real-time monitoring , and control of your access control system—all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3-100/C3-200/C3-400 versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The C3-100/C3-200/C3-400 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.

Features:

• Multiple hardware protection measure

There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.

•Integration with other security systems

C3-200 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.

• Support different wiegand reader or ABA reader

The controller support different wiegand format, and can connect to different reader, including ID card reader and Mifare card reader

• Input/Output ports to control doors

Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.

• Variety of communication function

Using either serial or TCP/IP communication, it provides reliable network system

• B/S structure software

It is easy to manage the system by browser from client PC. There is no need to install software on each client.

• Normal open after first punch card is configurable
• Real-time Monitoring of Door status

Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.

• Simple Access Control System Configuration
• Interlock function

Link different doors with special logic that one door is Open, others should be closed.

• Multi-card operation

This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.

• Anti-Passback
• Duress Mode
• SDK available

The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.

Specifications:

Model

C3-200

CPU

32bit MIPS CPU

RAM

32M bits

Flash Memory

256M bits

Display

LCD

User

30,000

Event Buffer

100,000

Power / Current

DC 9.6V-14.4V, Rated Max.1A

Dimension (L*W)mm

160(W)*106(H)(single board )

345(W)*275(H)*70(D)(with power supply and metal box)

Certification

CE, FCC

Reader Port

4ea (26bit Wiegand, 8bit Burst for PIN)

Communication

RS485, TCP/IP

Baud Rate

38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)

Input Port

6ea (Exit Button#1, Exit Button#2, Door Sensor#1, Door Sensor#2, Aux#1, Aux#2)

Output Port

2ea (2 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC) , 2ea (2 Aux FORM-C Relay Output, SPDT 2A@30VDC)

LED Indicator

Yes, LED indication for communication, power, status and punch card

OperatingTemperature

0°to +55°C

Operating Humidity

10% to 80% relative humidity non-condensing


C3-200 Package A	Item	Description	Quantity
	C3-200	Control Panel	1ea
	Case01	Metal Case	1ea
	ZKPSM030	Power Supply, DC12V/3A, non-available to charge for battery back-up	1ea
	FR107	Diode for Lock	1ea
	Key	Key of Metal Case	2ea
	ZKAccess CD	Access Software for Control Panel User Manual	1ea
	Gross Weight	3.40kg
	Size	380(L)80(H)290(W)mm

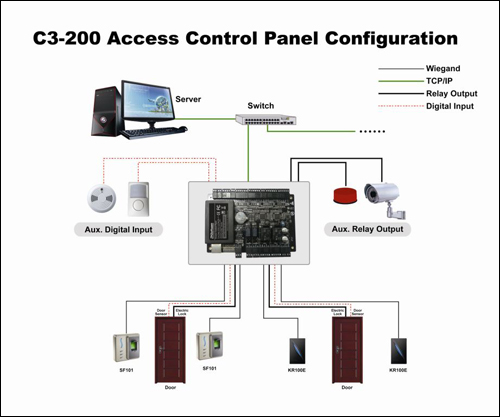

Connection Diagram:
